Grundlegende Informationen.
Modell Nr.
MIC-VSCM-20T/40T
Kann es verarbeitet und angepasst werden
ja
Transportpaket
Wooden Box
Spezifikation
2600 x 2400 x 2650
Warenzeichen
MICMIC
Herkunft
Kunshan, Jiangsu
HS-Code
8428399000
Produktionskapazität
500PCS/Year
Produktbeschreibung
We have rich experience and mature solutions in production and testing technology.
Our company's products are widely used in rubber products, sealing products, alloy products, precision metal parts, etc., for production, quality testing, packaging, improving customer part efficiency and quality, and helping customers occupy the market

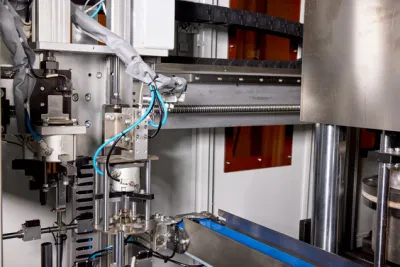

![Single-Cavity Automatic Vulcanization Moulding Machine Rubber Automatic Feeding Equipment Test Instrument](http://img6.grofrom.com/www.zhiyuspringgroup.de/226f3j00eiPqbtAaOTcR/Single-Cavity-Automatic-Vulcanization-Moulding-Machine-Rubber-Automatic-Feeding-Equipment-Test-Instrument.webp)
Items:
Parts surface and dimensions with different materials and shapes can be Production &inspected
Not limited to product testing as shown in the diagram, customizable according to customer needs
Parts surface and dimensions with different materials and shapes can be Production &inspected
Not limited to product testing as shown in the diagram, customizable according to customer needs
Type | MIC-VSCM-20T/40T-02 | MIC-VSCM-20T/40T-04 | MIC-VSCM-20T/40T-06 | MIC-VSCM-20T/40T-08 |
Number of Cavity | 2 | 4 | 6 | 8 |
Size | 1800*1100*2650 | 2200 x 2400 x 2400 | 2400 x 2400 x 2400 | 2600 x 2400 x 2400 |
Weight (T) | 1.2 | 2.9 | 3.9 | 4.9 |
Power (KW) | 3.5 | 5.2 | 7.2 | 9.2 |
Gas Consumption (L) | 230/260 | 230/260 | 280/360 | 330/410 |
Voltage (V) | 380 | 380 | 380 | 380 |
Gas (bar) | 5-6 | 5-6 | 5-6 | 5-6 |
Tooling OD Max. (mm) | 120 | 120 | 120 | 120 |
Tooling Height (mm) | 94 | 94 | 94 | 94 |
Single Cav. Pressure Max (T) | 20/40 | 20/40 | 20/40 | 20/40 |
Temperature Variation (ºC) | +/-3 | +/-3 | +/-3 | +/-3 |
Advantage:
*Optional : trimming machine, visual inspection machine, packaging machine
*Optional : trimming machine, visual inspection machine, packaging machine
*Auto Production:feeding, vulcanization, unloading, trimming, agent spraying;
*Set and monitor single cavity time, vulcanization time, temperature (up to 250°C), and pressure (20T/50T)..
*Whole machine cover, exhaust collection, Min. pollution;
*40-50 ºC internal,reduce cavity heat loss, no seasonal variation;
*Single cavity production, stable production with consistent dimension and appearance;
*Quick change-over, 35-45 mins for cavity temperature to 180 ºC;
*Low energy consumption;
*Easy relocation;
SCM Efficiency Comparison
Model | Efficiency | Labor | EHS | Cost | Others |
Traditional compression moulding | -Cycle time/pce = whole cycle time / qty of cavity -Large auxiliary time and space requirements | -Skilled Operator -Max. 3 machines / person, 3 shifts -Hard to hire operators upon poor condition | -Heating hole mold plate without protection, easy heat loss -High energy consumption -No control of exhaust -Hot Environment -Burn injury to Operator | -Moulding machine -Preforming machine -Double power cost -Labor cost -Environment protection | -poor temperature and pressure uniformity -Inconsistent product quality and increased variability -Long preparation time for preheating before production |
SCM | -Min. cycle time /pce: 20s -Cycle time/pce = curing time / stations * cavities per station | -Un-skilled operator; stamping and rubber belt buffer loading -Operating Min. 10 machines / person -Low labor required -Improved working condition | -Single cavity heating and control -Low energy consumption, sustainable development -Exhaust collection -Enhanced heat efficiency with whole machine cover -Avoid potential burns by eliminating direct contact.. | -Whole system (include preformer): 2.4,6,8 cavities | -Single cavity temp and pressure control with minimal variability -Product consistency -Short pre-heating lead-time -Connect to trimming, spring, greasing, LTD, etc -Single Piece Flow production cell |

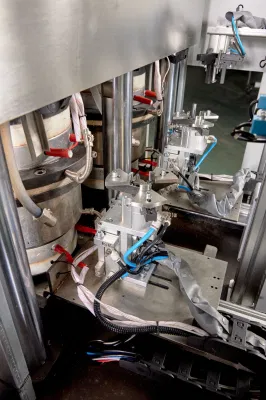

![Single-Cavity Automatic Vulcanization Moulding Machine Rubber Automatic Feeding Equipment Test Instrument](http://img6.grofrom.com/www.zhiyuspringgroup.de/226f3j00CiDqcgJrgQbU/Single-Cavity-Automatic-Vulcanization-Moulding-Machine-Rubber-Automatic-Feeding-Equipment-Test-Instrument.webp)
Packaging method: Non fumigation wooden box packaging
Transportation: Sea freight (designated by Party A)
Transportation: Sea freight (designated by Party A)

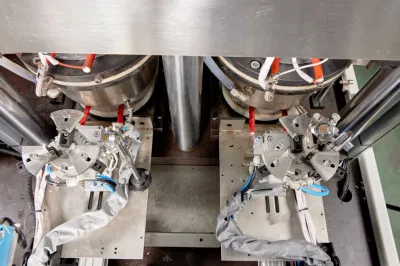

![Single-Cavity Automatic Vulcanization Moulding Machine Rubber Automatic Feeding Equipment Test Instrument](http://img6.grofrom.com/www.zhiyuspringgroup.de/226f3j00CVPkoiAmfaqG/Single-Cavity-Automatic-Vulcanization-Moulding-Machine-Rubber-Automatic-Feeding-Equipment-Test-Instrument.webp)
Engineer on-site installation and debugging
Equipment operation training
Equipment maintenance training
Equipment maintenance training
Equipment operation training
Equipment maintenance training
Equipment maintenance training
About us
![Single-Cavity Automatic Vulcanization Moulding Machine Rubber Automatic Feeding Equipment Test Instrument](http://img6.grofrom.com/www.zhiyuspringgroup.de/226f3j00MiPqbewRbacY/Single-Cavity-Automatic-Vulcanization-Moulding-Machine-Rubber-Automatic-Feeding-Equipment-Test-Instrument.webp)
![Single-Cavity Automatic Vulcanization Moulding Machine Rubber Automatic Feeding Equipment Test Instrument](http://img6.grofrom.com/www.zhiyuspringgroup.de/226f3j00vVLqcndylEoU/Single-Cavity-Automatic-Vulcanization-Moulding-Machine-Rubber-Automatic-Feeding-Equipment-Test-Instrument.webp)
Main Products:Cold Feed Preformer,Multi-Station & Single Cavity Moulding,Automatic trimming machine,Automatic punching and loading machinepunching and loading machine, air-tightness detector, Automatic O-ring detection machine,automatic sealing bag packaging machines, and other customized automatic equipment.
Our goal is to maximize customer benefits.
Business Philosophy: Pursuing innovation, Fostering communication, Embracing teamwork, Driving optimization, and Continuous improvement.
![Single-Cavity Automatic Vulcanization Moulding Machine Rubber Automatic Feeding Equipment Test Instrument](http://img6.grofrom.com/www.zhiyuspringgroup.de/226f3j00KiDbktwqhacf/Single-Cavity-Automatic-Vulcanization-Moulding-Machine-Rubber-Automatic-Feeding-Equipment-Test-Instrument.webp)
Suzhou Micmic Automation Technology Co., Ltd. is a manufacturer with 13 employees; it was established in 2015, located in Room 101, Building 9, No. 828, Xueyuan Road, Bacheng Town, Kunshan City, Suzhou, Jiangsu Province, China. The workshops occupy an area of more than 1,000 square meters, Suzhou Micmic Automation Technology Co., Ltd. has successful foreign trading experience in South Asia.
![Single-Cavity Automatic Vulcanization Moulding Machine Rubber Automatic Feeding Equipment Test Instrument](http://img6.grofrom.com/www.zhiyuspringgroup.de/226f3j00KWLqbuAzHtof/Single-Cavity-Automatic-Vulcanization-Moulding-Machine-Rubber-Automatic-Feeding-Equipment-Test-Instrument.webp)
![Single-Cavity Automatic Vulcanization Moulding Machine Rubber Automatic Feeding Equipment Test Instrument](http://img6.grofrom.com/www.zhiyuspringgroup.de/226f3j00shLqoimrbacf/Single-Cavity-Automatic-Vulcanization-Moulding-Machine-Rubber-Automatic-Feeding-Equipment-Test-Instrument.webp)
Since its establishment, the company has a number of patents & software works, and has rich experience and solutions in the industry.
Fully Integrated Automatic Solution for Rubber and Plastic Components
Advantages of the integrated solution: Fully automated, promoting strong sustainability.
